The battery pack is 36V15AH which can guarantee a maximum climbing of 20 degrees, a maximum speed of 40km/hour, a maximum battery life of 50 kilometers, and a maximum load of 120KG. (depending on conditions and rider weight)
It adopts front-wheel drive mode and is equipped with a 350W high-power motor.
The electric bicycle is equipped with Bluetooth and GPS functions. After downloading the APP on the mobile, you can lock the bike with the APP, record the driving track, and independently adjust the maximum speed limit on the APP.

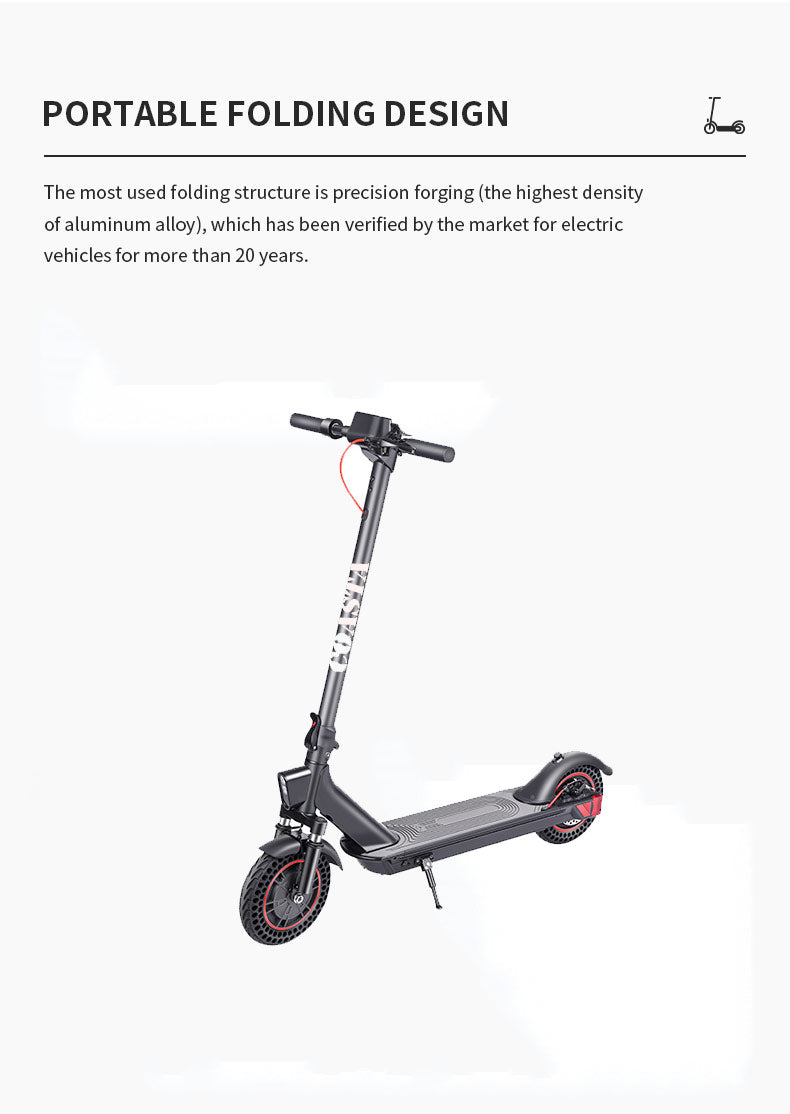

The design conforms to North American ergonomics. The vehicle size is 1130*500*1177(mm), and the folded size is 1130*500*542(mm). The body is made of aviation aluminum alloy, which is light and durable. The weight including the battery is only 18kg.

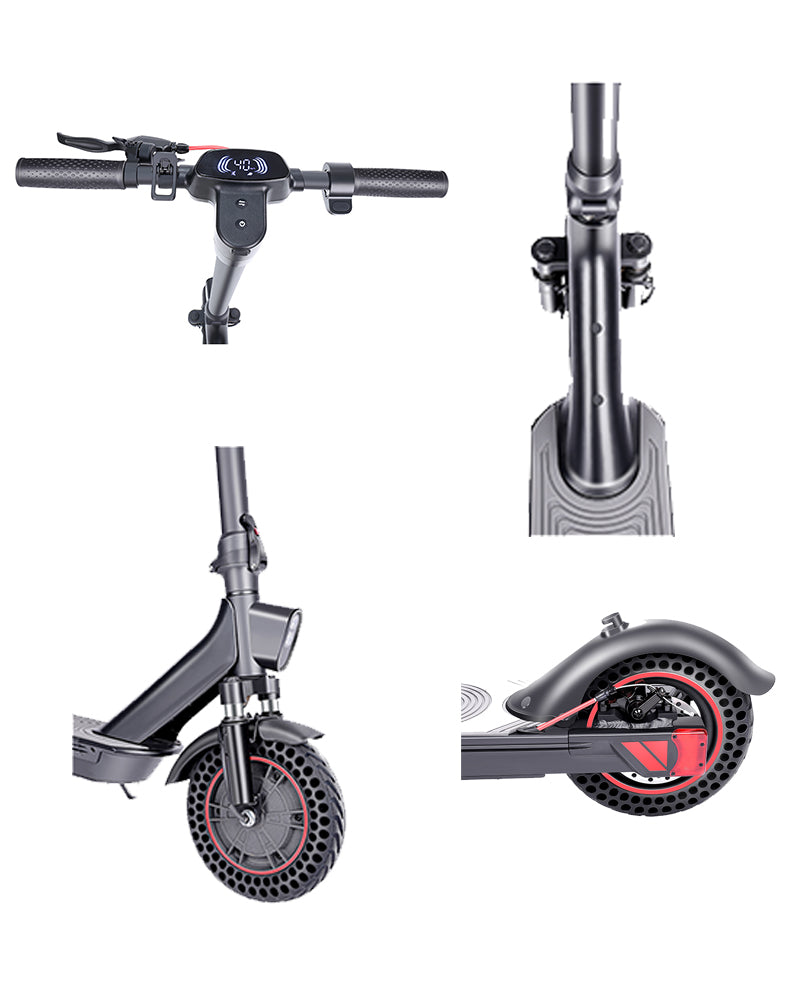

The tires are 10-inch honeycomb solid tires, front EBS electronic brakes + rear disc brakes with bright headlights and bilateral brake taillights to maximize riding comfort, safety and off-road performance.

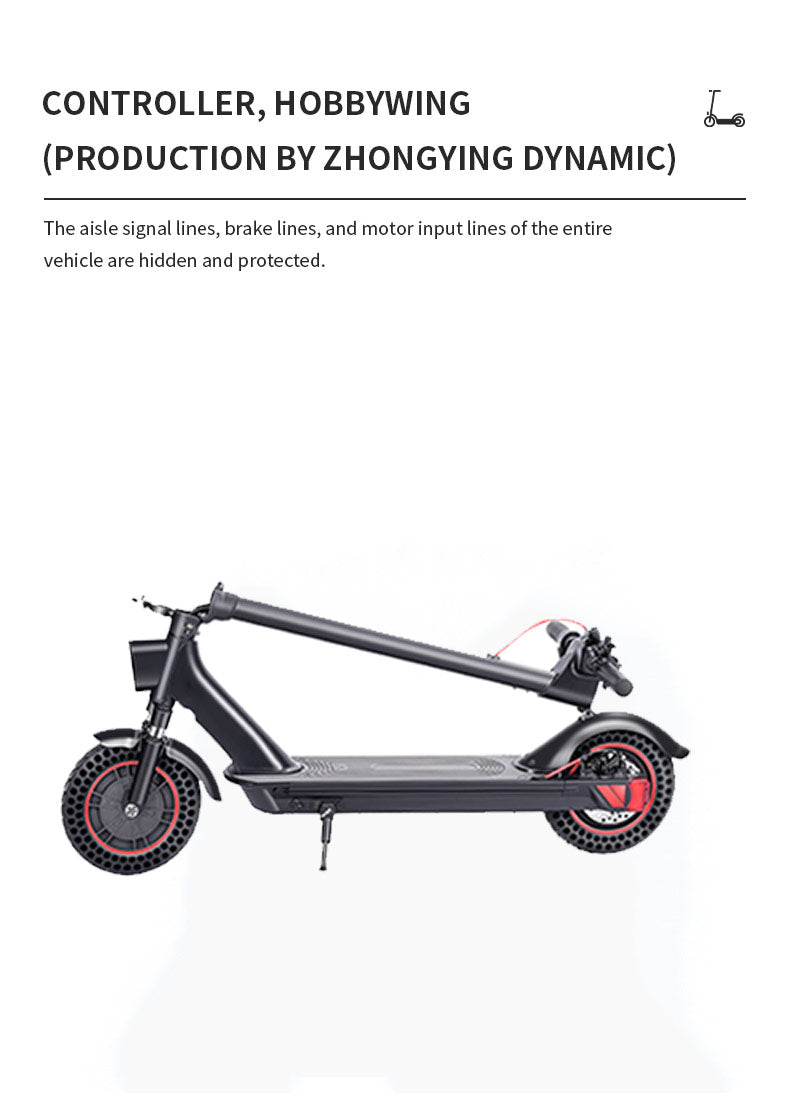

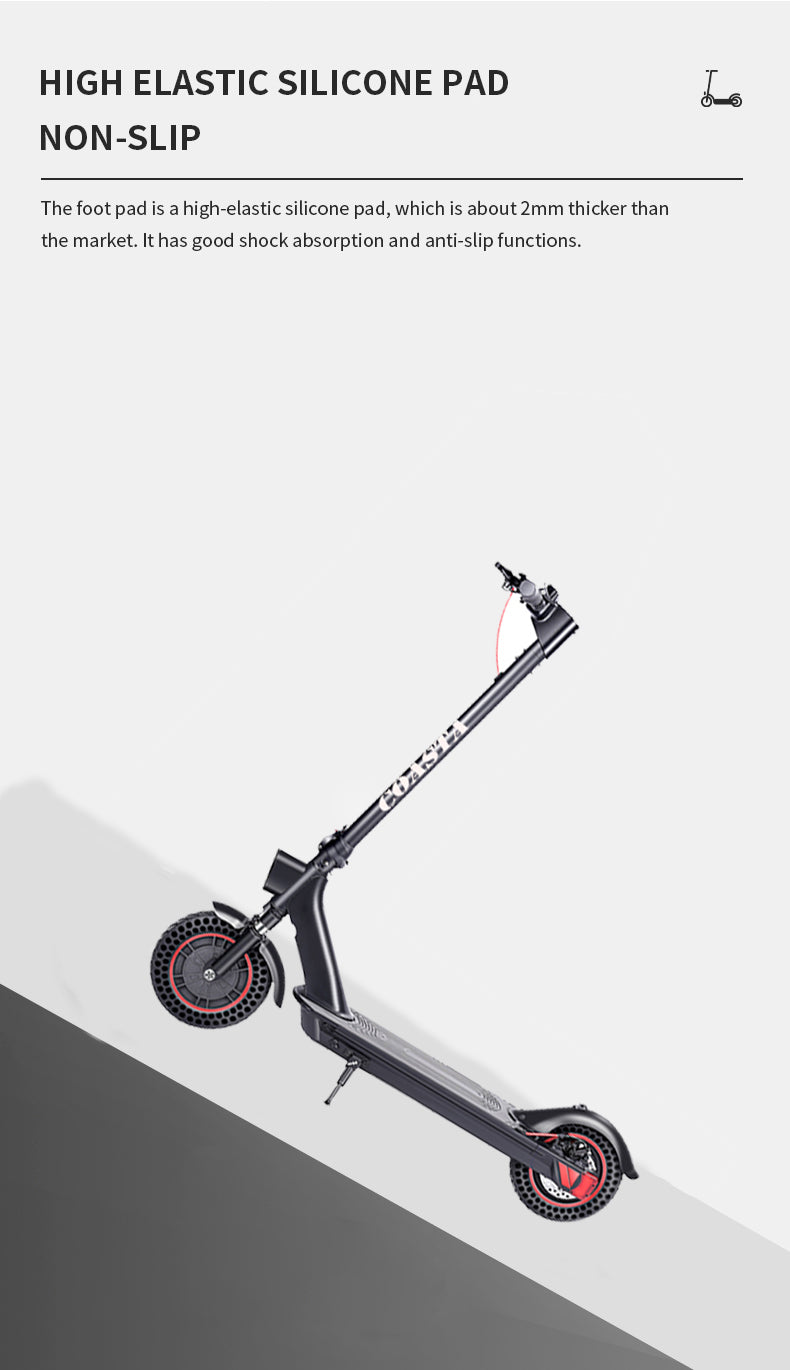

Signal wires, brake wires and motor wires are hidden and protected. Equipped with high elastic silicone feet, 2MM thicker than ordinary ones. They have better shock absorption and slip resistance for a more comfortable ride.

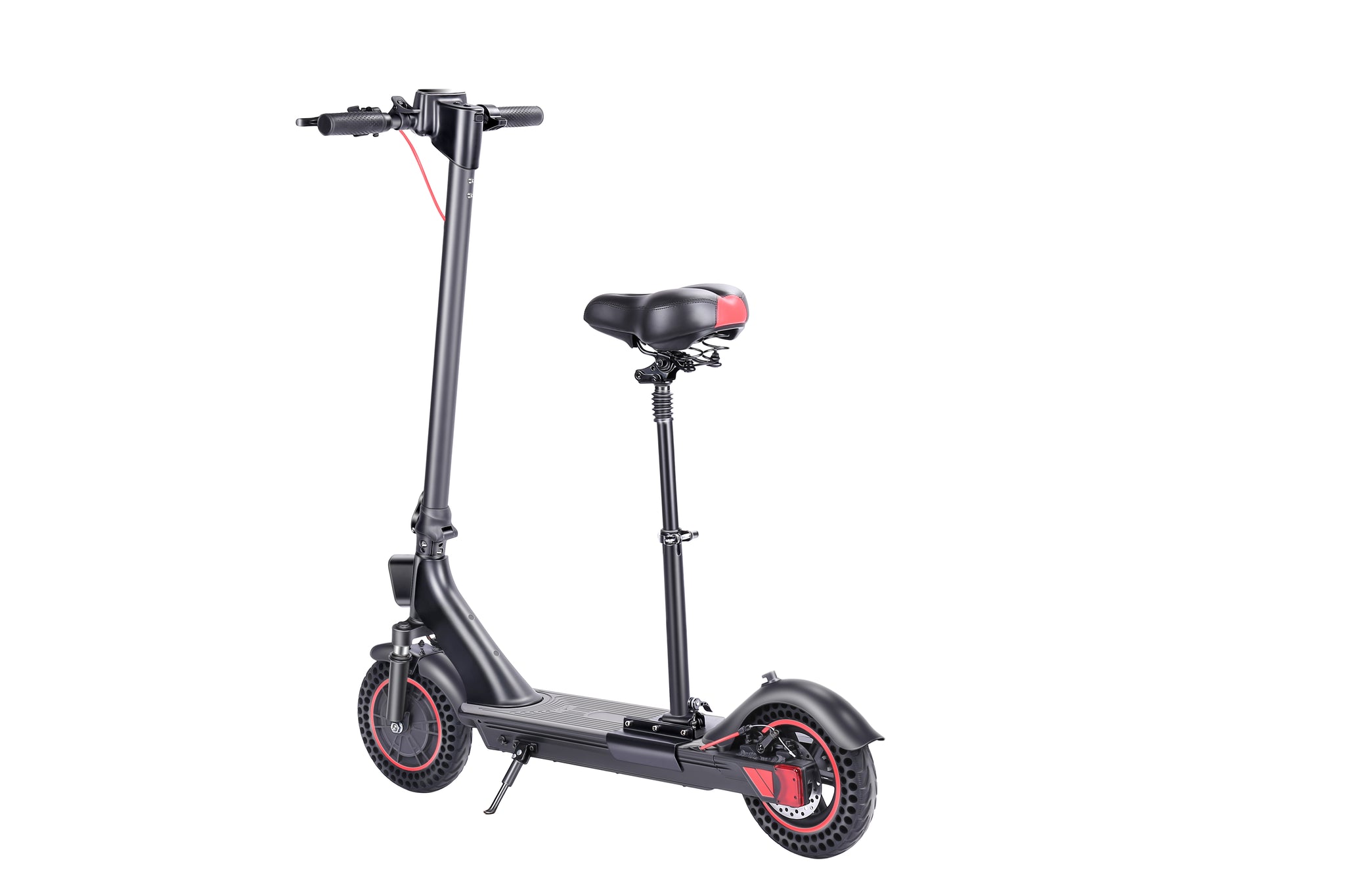

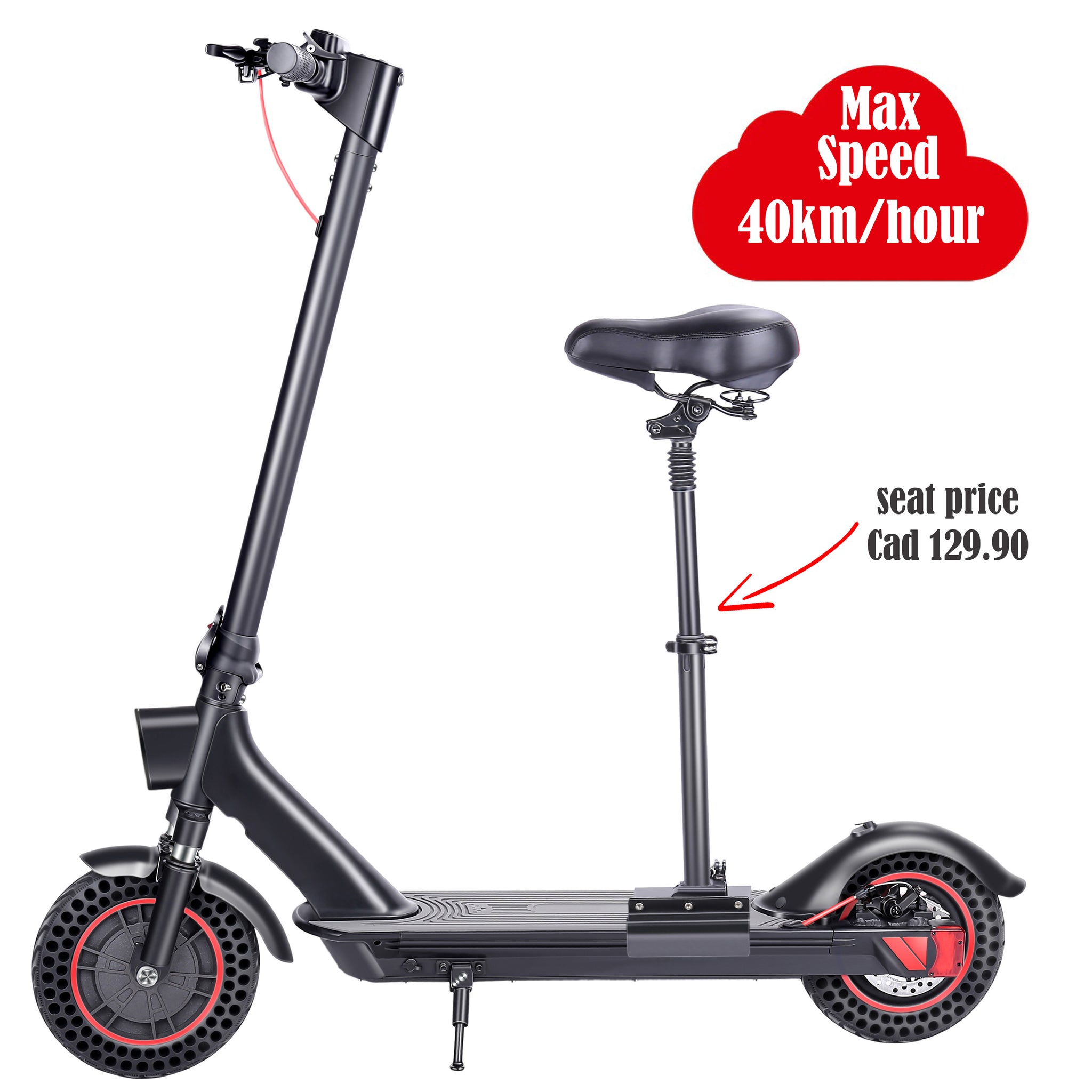

Riding seat and bag can be selected separately.
One year warranty for local repair and replacement. Lifetime parts repair service.
|

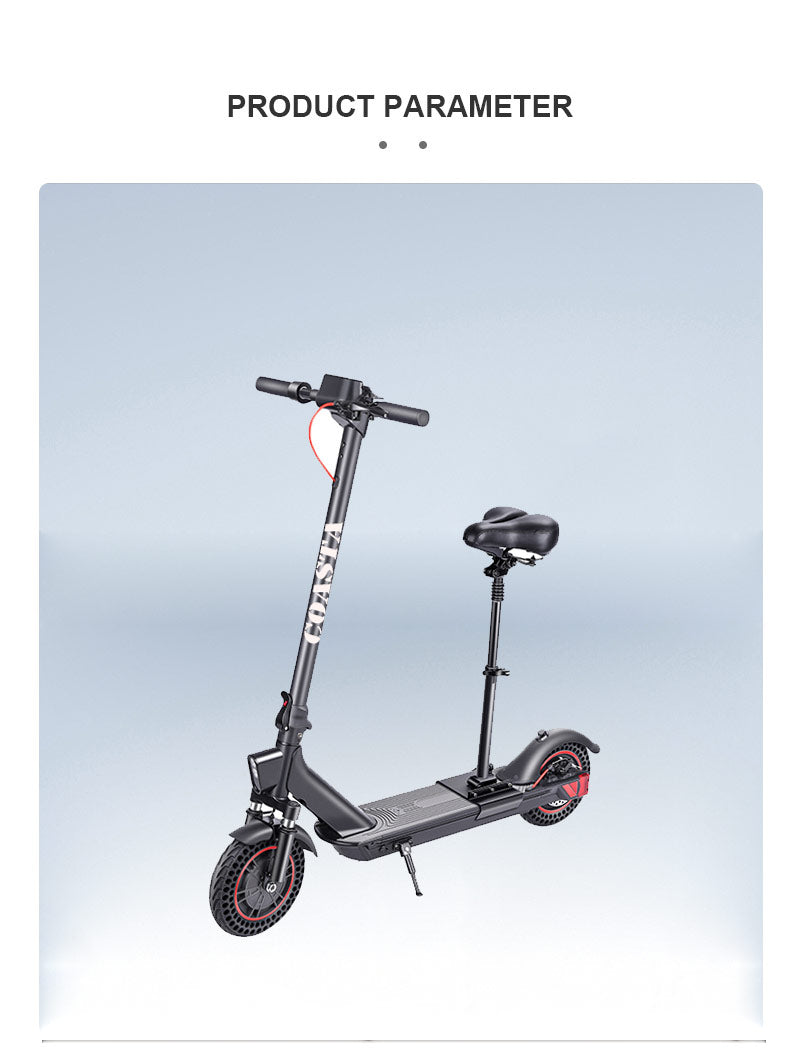

L6 MAX Specification Parameters |
||
|
|
Scooter size |
1130*500*1177(MM) |
|
Folding size |
1130*500*542(MM) |
|
|
N.W |
18KG±0.1KG |
|
|
Width of handle |
500MM |
|
|
pedal width |
160MM |
|
|
Pedal height from the ground |
92MM |
|
|
product performance |
Max Loading |
120KG |
|
Max speed |
＜40KM/H |
|
|
Climbing |
≤20° |
|
|
waterproof |
IP55 |
|
|
Max Range |
40KM～45KM |
|
|
Battery parameters
|
standard voltage |
36V |
|
Battery Type |
LG MH1-3200 18650 Lithium cell |
|
|
Battery capacity |
15Ah |
|
|
Motor parameters
|
Generator style |
Brushless DC motor |
|
output rating |
350W |
|
|
Max Rotation Speed |
730±5％rpm/min |
|
|
Rated Voltage |
36V |
|
|
Power output maximum torque |
22.88Nm |
|
|
Charger parameters |
Output Voltage |
DC54.6V/2A |
|
Charging time |
2A/6H 4A/3H |
|
|
Braking |
Braking method |
Front E brake and Rear disc brake |
|
Braking length |
5M-7M（30KM/H） |
|
|
Lighting system |

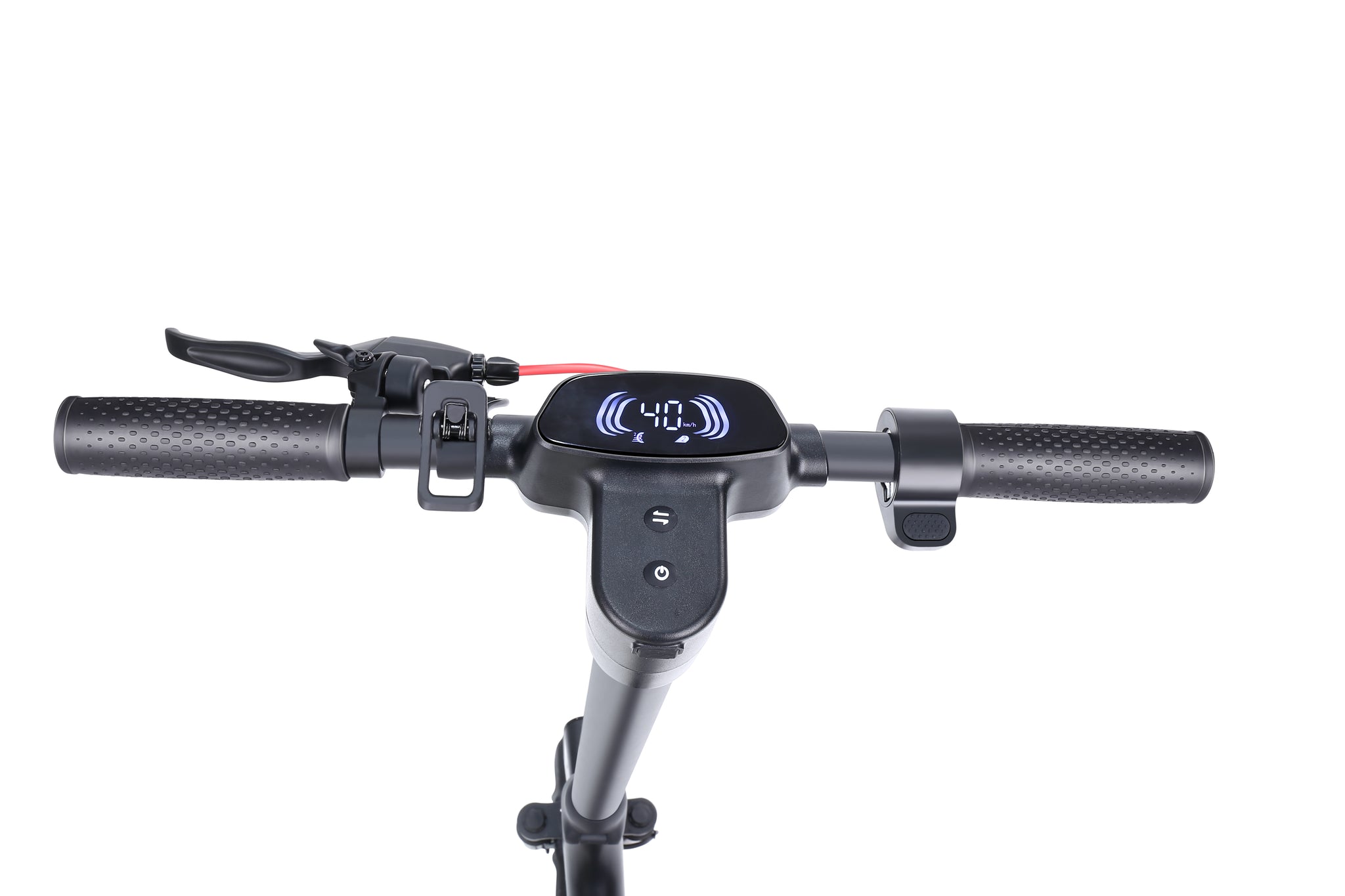

Display |
LCD |
|
Adaptive Forward Lighting
|
LED Driving lamp |
|
|
Tail light |
LED Driving lamp |
|
|
Shocking absorption system |
Front |
Hydraulic shock absorption |
|
Folding type |
Rod handle |
Removable/Foldable |
|
scooter body |
Foldable |
|
|
Tire information |
Front wheel |
10*2.125 solid tyre |
|
Back wheel |
10*2.125 solid tyre |
|
